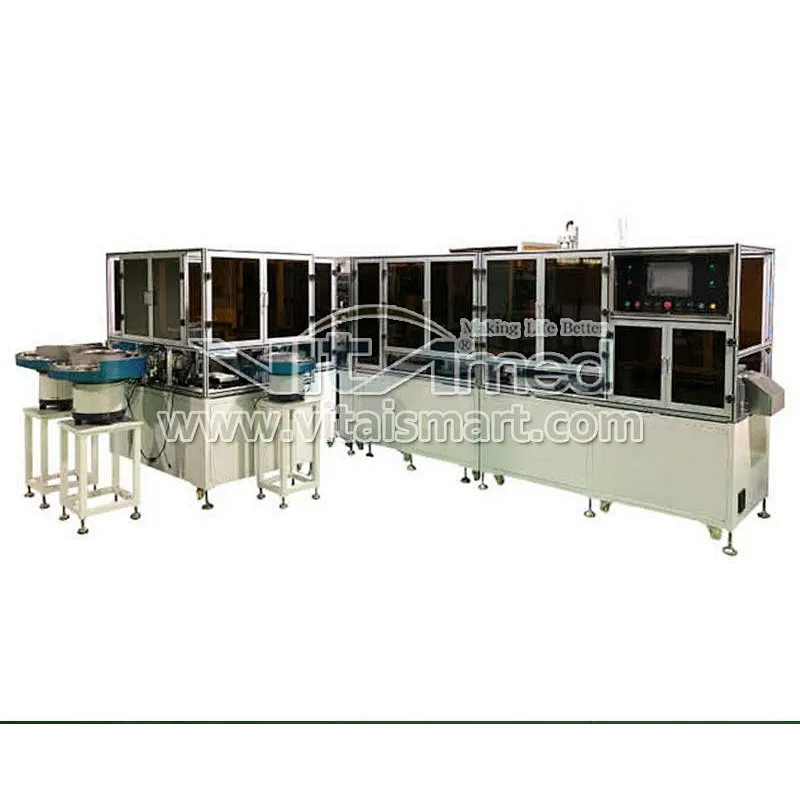

Full Automatic Secretion Bag Machine

• Specification Code:Full Automatic Secretion Bag Machine

1. The machine speed is about 700 PCS/hour, only need one worker operation.

2. The total power of 25 kw, air pressure can use 6-8 kg.

3. The machine size: 9000 x3650x1900mm, the weight is about 7000 kg.

4. Automatic infusion bag machines, including automated assembly pipe clamp, automatic welding, automatic bag body shaping, automatic cut into a single finished bag body.

5. PLC control system, touch screen interface, various parameters Settings, counting remind production, operation is simple and easy to get started.

6. The fault alarm system, can be displayed on the touch screen, convenient staff quickly ruled out.

7. Constant temperature water circulation system, mold temperature, ensure each medical infusion bag welding process.

8. Stainless steel frame, satisfies the requirement of medical bag purification workshop production.

9. Shandong WEGO medical has use the equipment.
