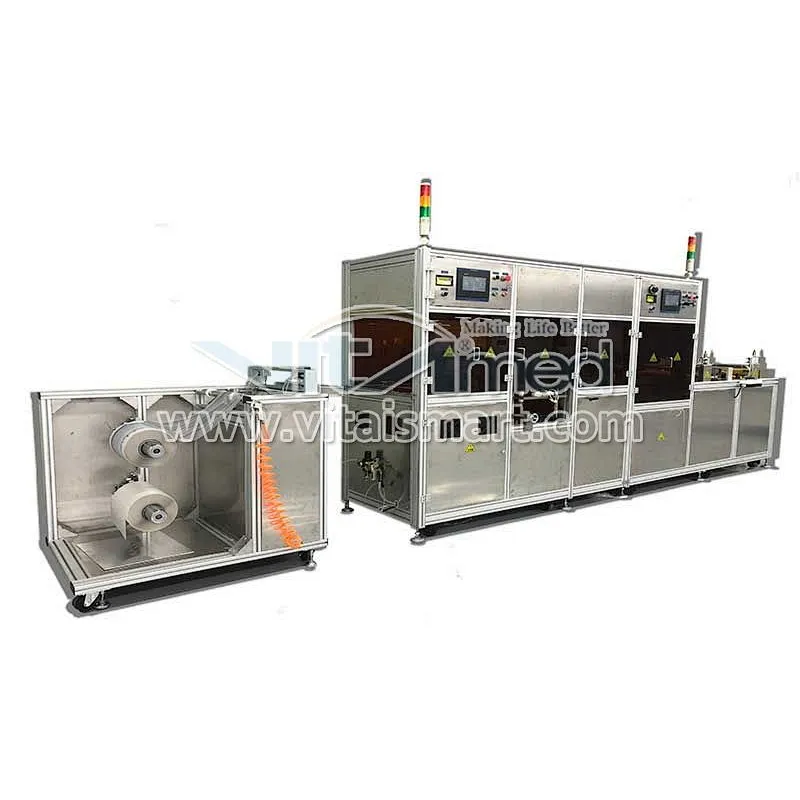

Automatic Urine Bag Machine

• Specification Code:Automatic Urine Bag Machine

Equipment Features:

This equipment is widely used in the medical industry, medical urine bags, drainage bags, waste liquid bags and other liquid bag body forming.



Machine Description:

1. The machine speed is about 1000PCS/hour, only 1 worker is required to operate.

2. The total power is 20kW, and the air pressure is 6-8kg.

3. Machine size: 6000x2800x1900mm, weight is about 2500 kg.

4. The liquid inlet pipe, anti-reverse flow film, liquid discharge pipe, and bag shape are automatically formed and welded on one machine.

5. Automatic welding equipment for urine bag, including welding pipe, welding reflux film, welding bag body, cutting, etc.

6. PLC control system, touch screen interface, easy to operate, with counting function to facilitate users to set output.

7. The fault alarm system can be displayed on the touch screen, which is convenient for personnel to quickly troubleshoot.

8. The water circulation constant temperature system ensures that the mould is at a constant temperature and makes the welding process of the medical urine bag consistent.

9. Aluminum alloy frame and stainless steel sealing plate meet the production requirements of medical bag purification workshop.

Machine Configuration

1. Double turntable type feeding device, roll the material on the drum.

2. One anti-reflux film device, 2 sheets of roll film.

3. 3 sets of high-frequency devices, one set is used for the welding of urine bag body pipe, two sets are used for the welding of the inlet pipe (anti-reverse flow film) and the discharge pipe.

4. 1 sets of cutting devices

5. 1 sets of chillers (cooling and heating function)

6. 2 sets of photoelectric sensors for film positioning

7. A set of programmable controller touch screen control
